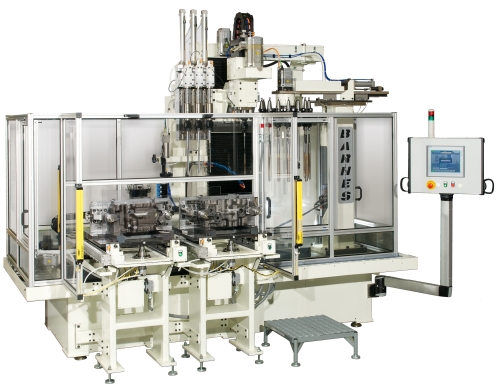

SSSP-1000-T Series of Bore Finishing equipment

The Barnes SSSP-1000 Series of Bore Finishing equipment is especially precise and rugged, engineered to process medium and large sized parts. The system is designed to process cavities requiring less than 2 microns geometry in a 24/7 production environment. The single spindle design, in conjunction with the available rotary tool changer, allows Bore Finishing of components with one or more diametric holes, utilizing several processing steps per cavity. Due to special features available with this system, it is also capable of bore finishing individual or ganged parts which contain cavities not always in optimum or repeated alignment to each other. The robust design of the SSSP-1000 base, pallet drive and spindle provides superior vibration dampening to facilitate high material removal, yet maintaining precise tolerances and critical surface finish tolerances for either “open bore" or “blind bore" cavities. To facilitate higher levels of production, there are two (2) load/unload stations, which eliminate operator handling down-time. Some typical key features of this system are as follows: Servo motor control of the Spindle drive, spindle vertical motion, rotary tool exchanger and the pallet x-axis and y-axis motions Camera interface to precisely map each cavity's location and enter that data into the PLC to adjust the pallet drive X-Y position during the bore finishing operations Pre-hone go/no-go probes for each boreRotary tool exchanger can hold at least 15 tools which can provide 5 (or more) processing steps for each cavity size Operator's Control Touch Screen (HMI) integrated with Siemans PLC Optional light curtain or alternative safety system Integrated coolant filtration and chiller system“Floating Head" aligned sintered diamond bore finishing tools
